| Parameter Name | Specifications & Standards | ||
|---|---|---|---|

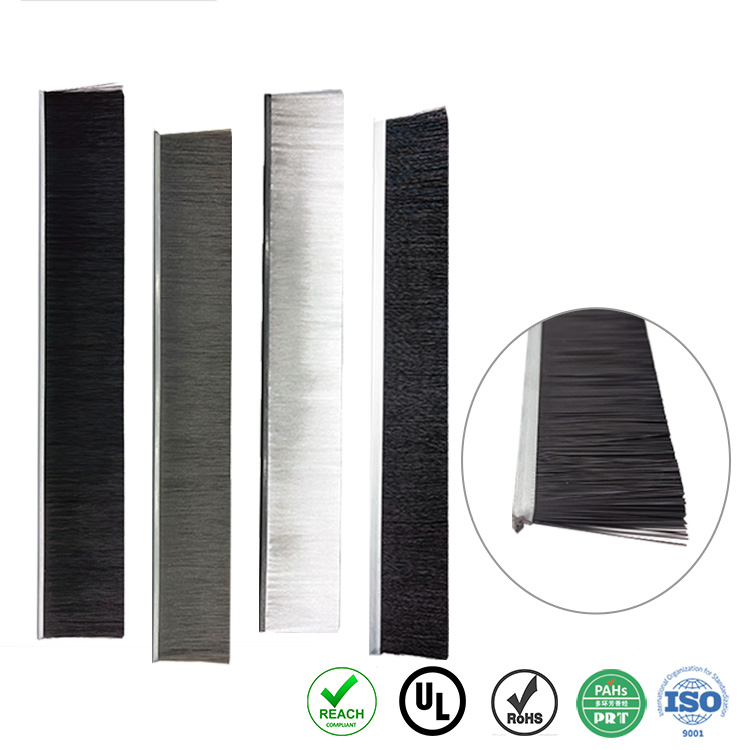

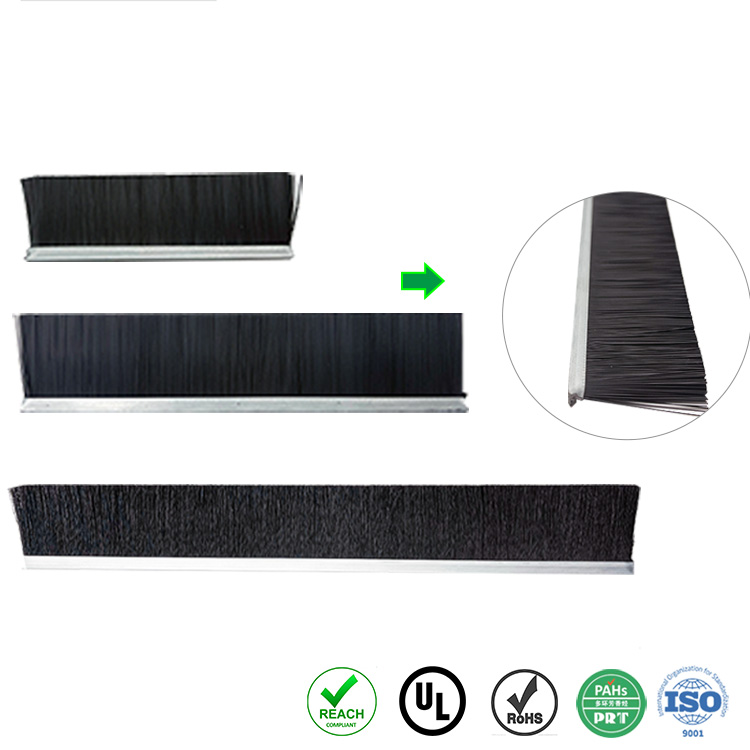

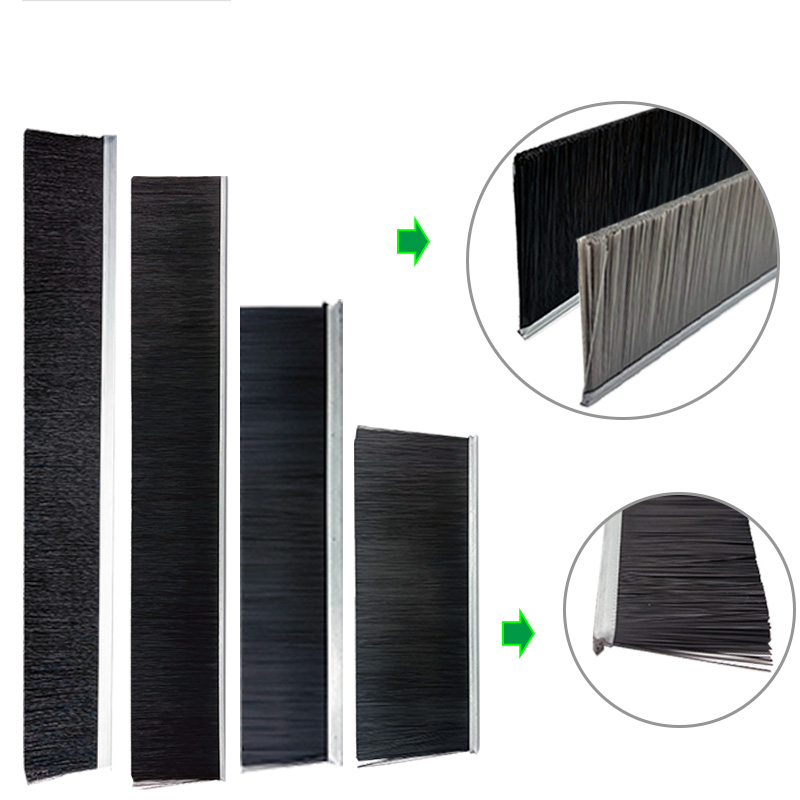

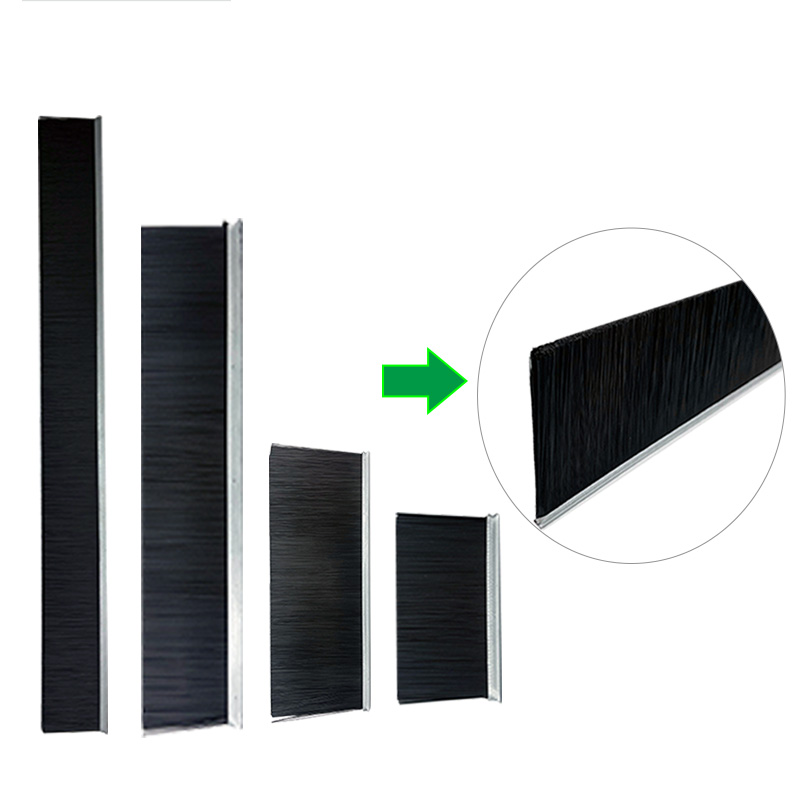

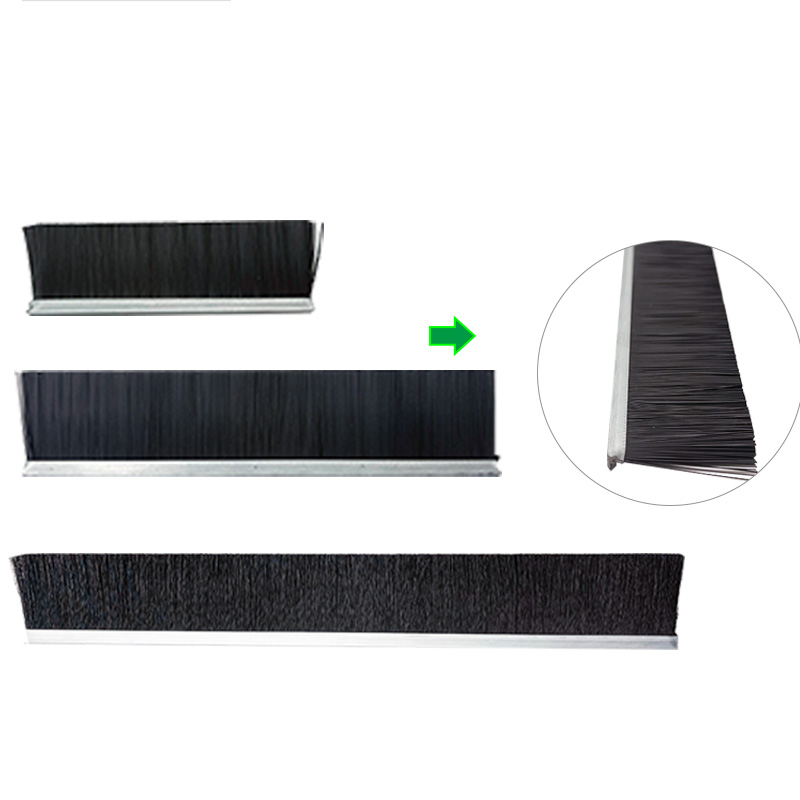

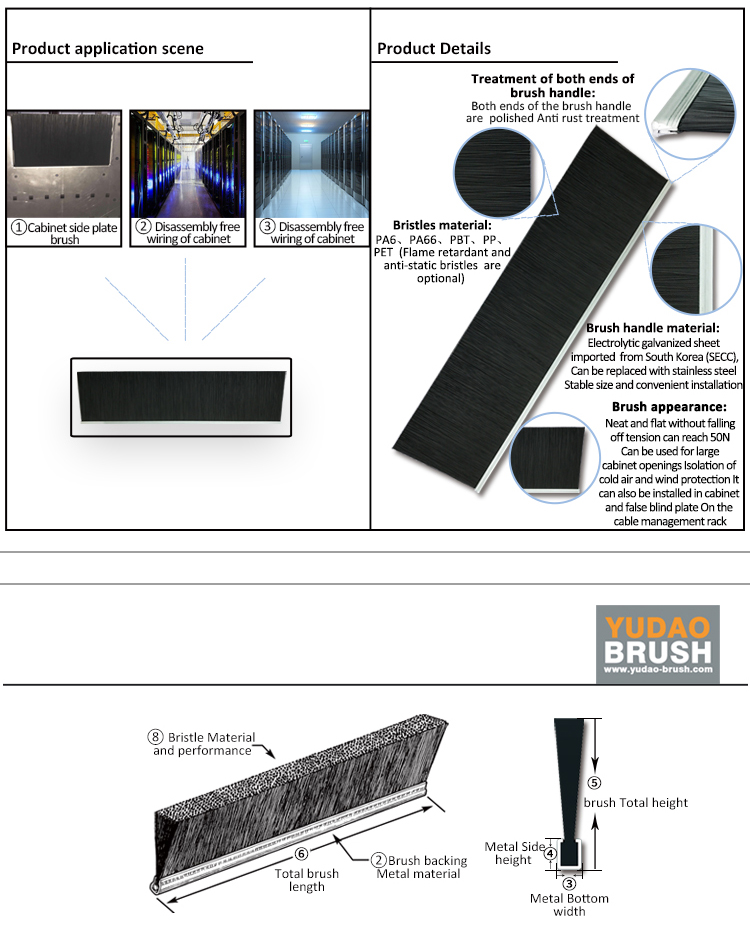

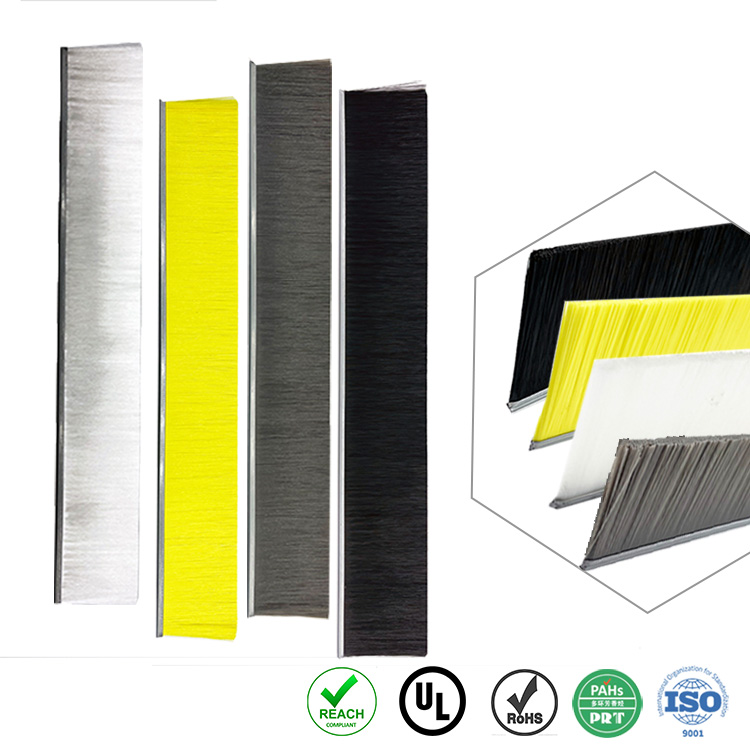

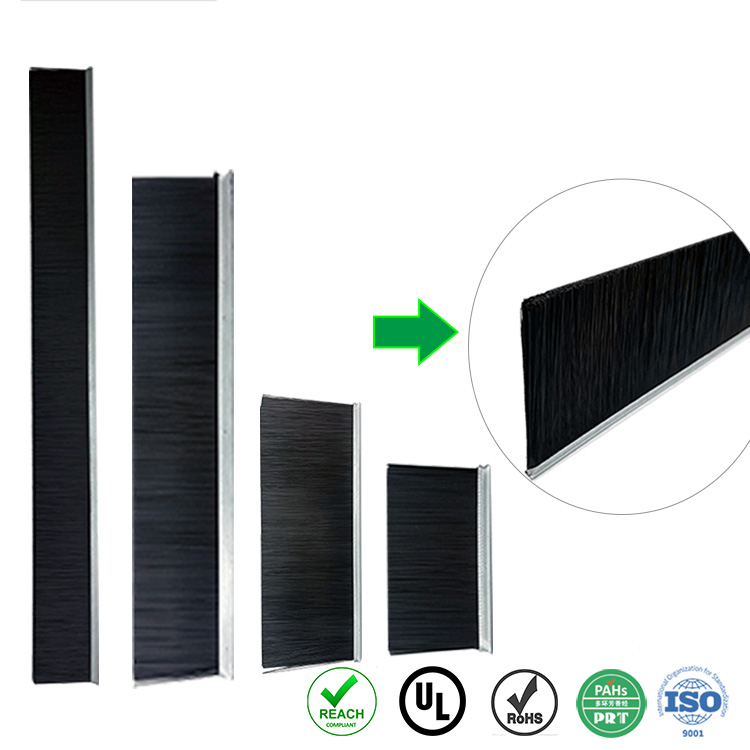

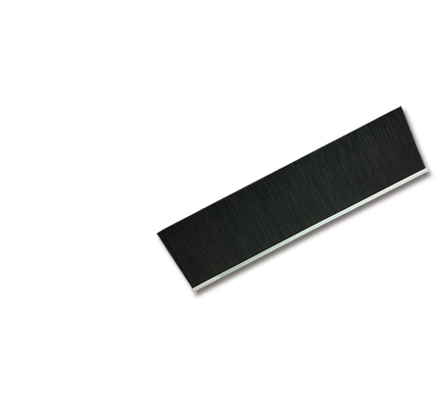

| Product Name | D Series - Iron Backing Strip Brush | ||
| Model | DA (SECC electrolytic galvanized sheet) | DB (SUS-304 stainless steel) | |
| Brush Backing | Certifications | RoHS (Pass), REACH (Pass), UL (Pass with file number), PAHs (Pass), Low Halogen (Pass) | |
| Bottom Width | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 8.0 | 9.0 | 10.0 | 11.0 | 12.0 mm | ||
| Side Height | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 8.0 | 9.0 | 10.0 | 11.0 | 12.0 mm | ||

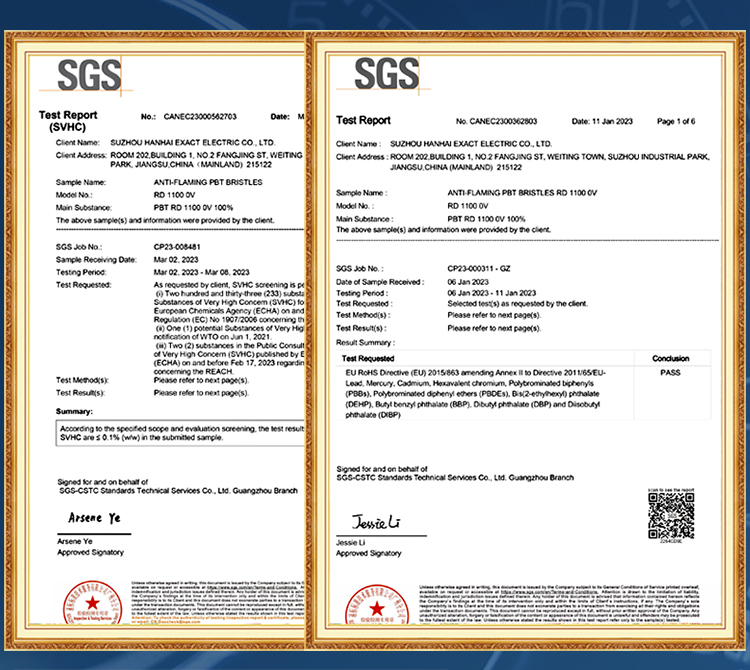

| Compliance | Tested via SGS to conform to international environmental standards | ||
| Bristle | Materials Option | PA6 (A, B, C, N), PA66 (O, P, U, V), PBT (D, E), PP (F, G, R), PPS (S), PVDF (T), PEEK (Q), PET (W), PA610 (X), PA612 (Y), Metal/Natural Fibers (H, J, K, L, M) | |
| Diameter | 0.15 | 0.2 | 0.25 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 mm | ||
| Shape & Color | Straight or corrugated wire. Available in Black, blue, white, red, yellow, green, orange, purple, transparent, gray | ||
| Tension strength | ≥ 50 N | ||
| Certifications | RoHS, REACH, UL (Pass), Low Halogen (Pass, except flame retardant bristle which contains approx. 8.5% bromine) | ||
| Environmental | PAHs Pass (SGS test) | ||
| Whole Brush | Custom Range | Total height: 10-200mm customizable | Total length: 20-3000mm customizable | |
| Compliance | Whole RoHS (Pass), Whole REACH (Pass), Whole UL (Pass with number) | ||
| Low Halogen | Pass (SGS test, except flame retardant bristles containing about 8.5% bromine) | ||
| Category | Specification / Details | ||||||
|---|---|---|---|---|---|---|---|

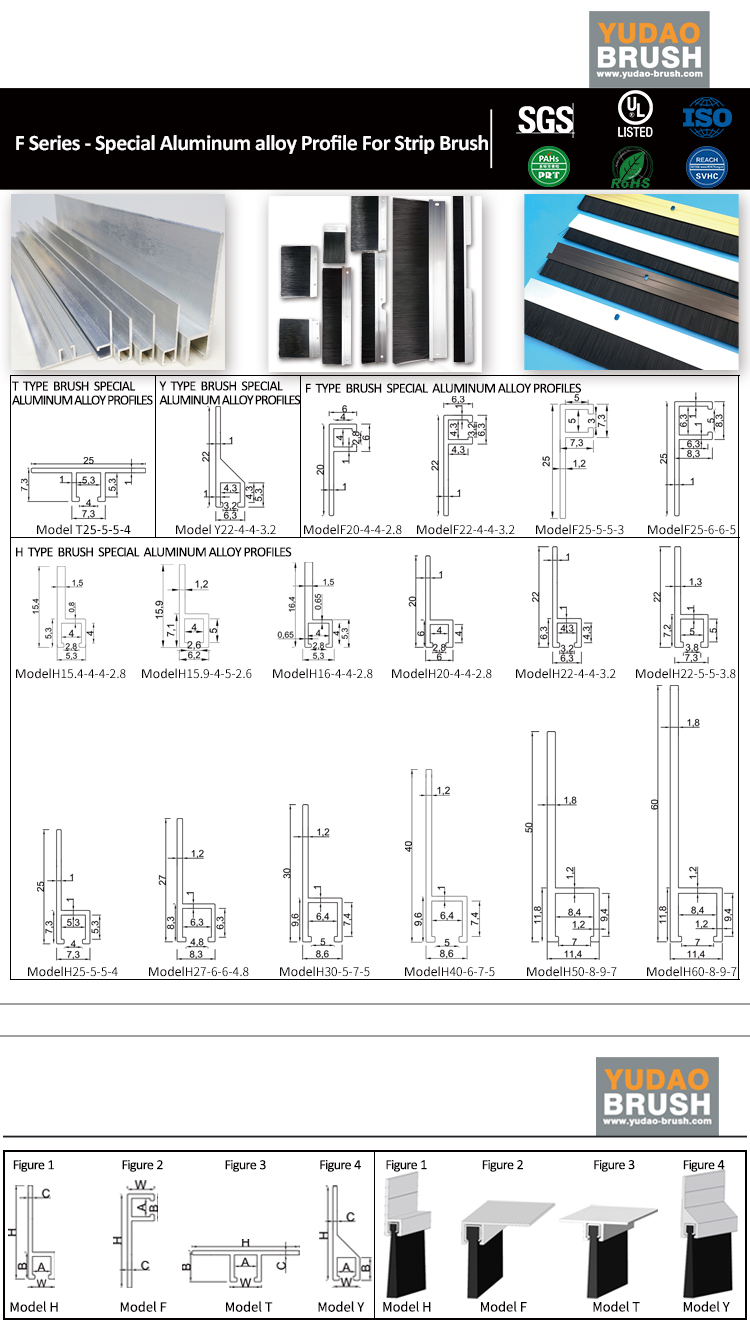

| Product Name | F Series - H / F / T / Y Shape Special Aluminum alloy Profile For Strip Brush | ||||||
| Aluminum Profile Details | Material | 6063-T5 aluminium alloy | |||||
| Certs | RoHS (Pass), REACH (Pass), UL (Pass) | ||||||
| Color Options | Natural color material / natural color oxidation / black baking varnish / black oxidation | ||||||
| Total Length L | 5-3000mm (Customizable) | ||||||
| Process Certification | Tested and passed via SGS | ||||||
| Special Colors | Other colors can be customized in batches | ||||||
| H-type Aluminum (Fig 1) | Model Code | H15.4-3.5-3.5-2.8 | H15.9-4-5-2.6 | H16.4-3.5-3.5-2.8 | H20-4-4-2.8 | H22-4-4-3.2 | H22-5-5-3.8 |
| H (Height) | 15.4mm | 15.9mm | 16.4mm | 20mm | 22mm | 22mm | |
| W (Width) | 5.3mm | 6.2mm | 5.3mm | 6mm | 6.3mm | 7.3mm | |
| A | 4mm | 4mm | 4mm | 4mm | 4.3mm | 5mm | |
| B | 5.3mm | 7.1mm | 5.3mm | 6mm | 6.3mm | 7.2mm | |
| C | 1.5mm | 1.2mm | 1.5mm | 1mm | 1mm | 1.3mm | |
| F-type Aluminum (Fig 2) | Model Code | F20-4-4-2.8 | F22-4-4-3.2 | F25-5-5-3 | F25-6-6-5 | ||
| H (Height) | 20mm | 22mm | 25mm | 25mm | |||
| W (Width) | 6mm | 6.3mm | 7.3mm | 8.3mm | |||
| A | 4mm | 4.3mm | 5mm | 6.3mm | |||
| B | 6mm | 6.3mm | 7.3mm | 8.3mm | |||
| C | 1mm | 1mm | 1.2mm | 1mm | |||
| T-type Aluminum (Fig 3) | Model Code | T25-5-5-4 | |||||
| H (Height) | 25mm | ||||||
| W (Width) | 7.3mm | ||||||
| A | 5.3mm | ||||||
| B | 7.3mm | ||||||
| C | 1mm | ||||||
| Y-type Aluminum (Fig 4) | Model Code | Y22-4-4-3.2 | |||||
| H (Height) | 22mm | ||||||
| W (Width) | 6.3mm | ||||||
| A | 4.3mm | ||||||
| B | 5.3mm | ||||||
| C | 1mm | ||||||
