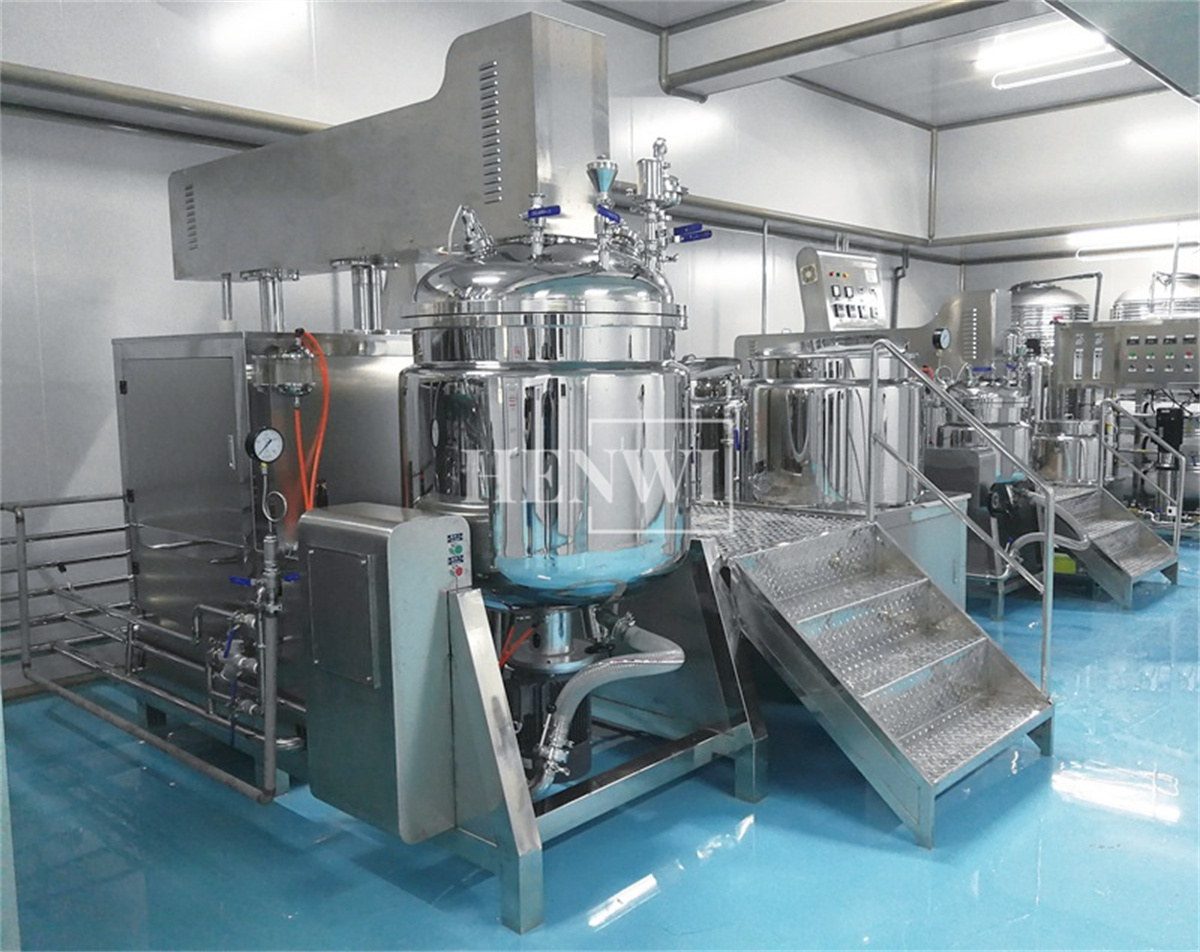

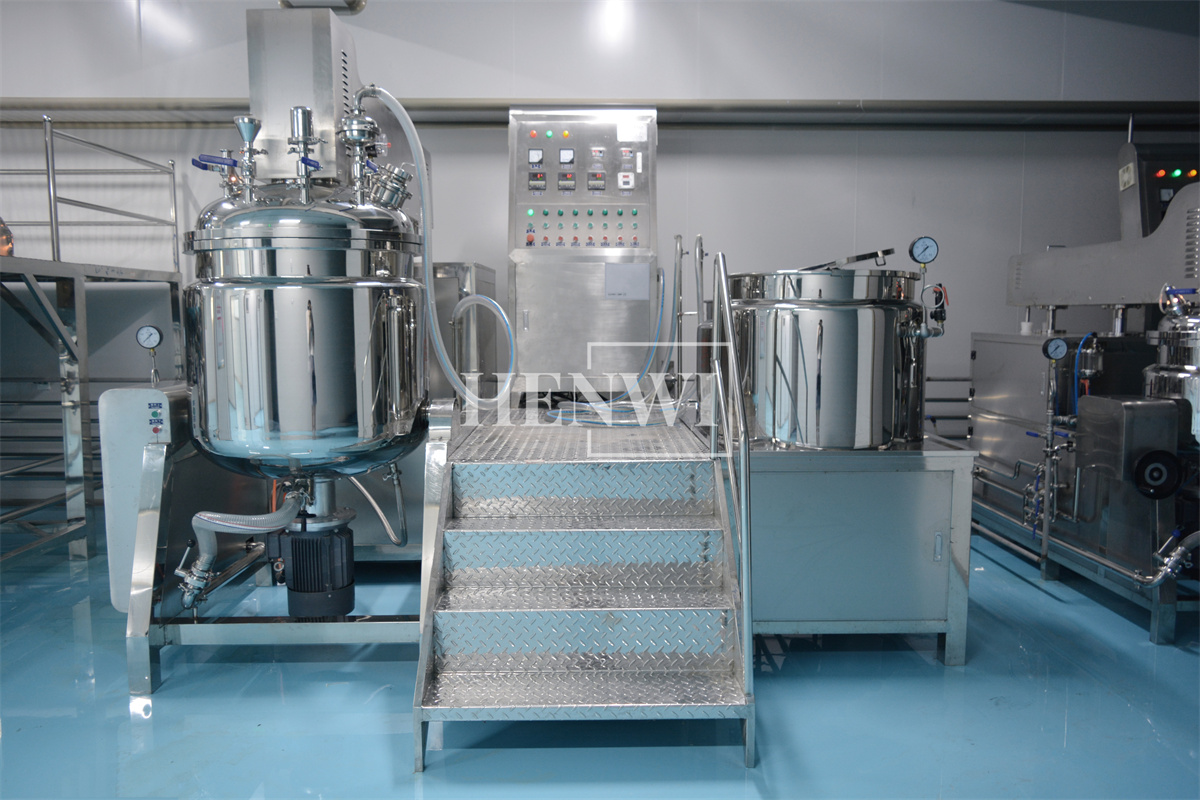

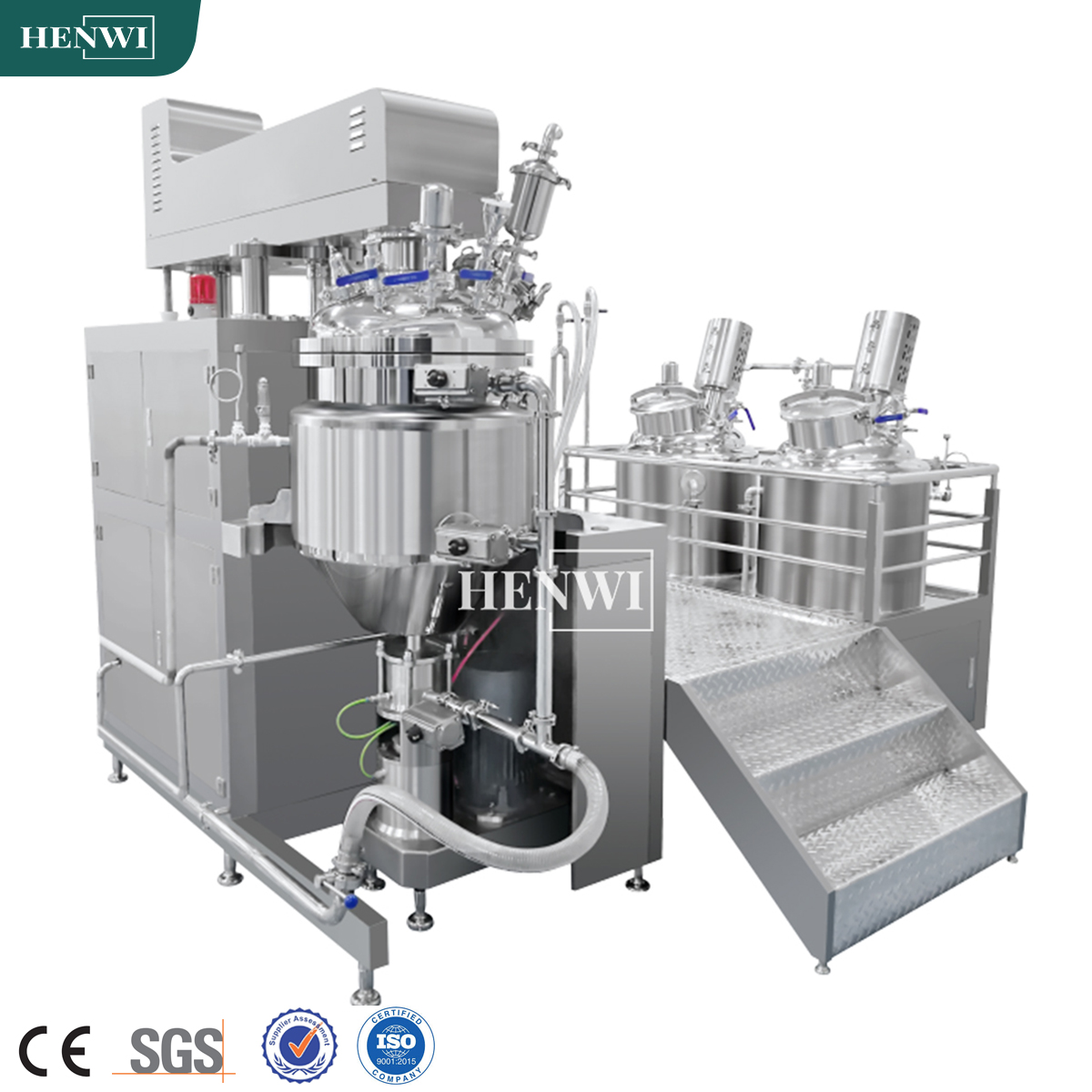

The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.

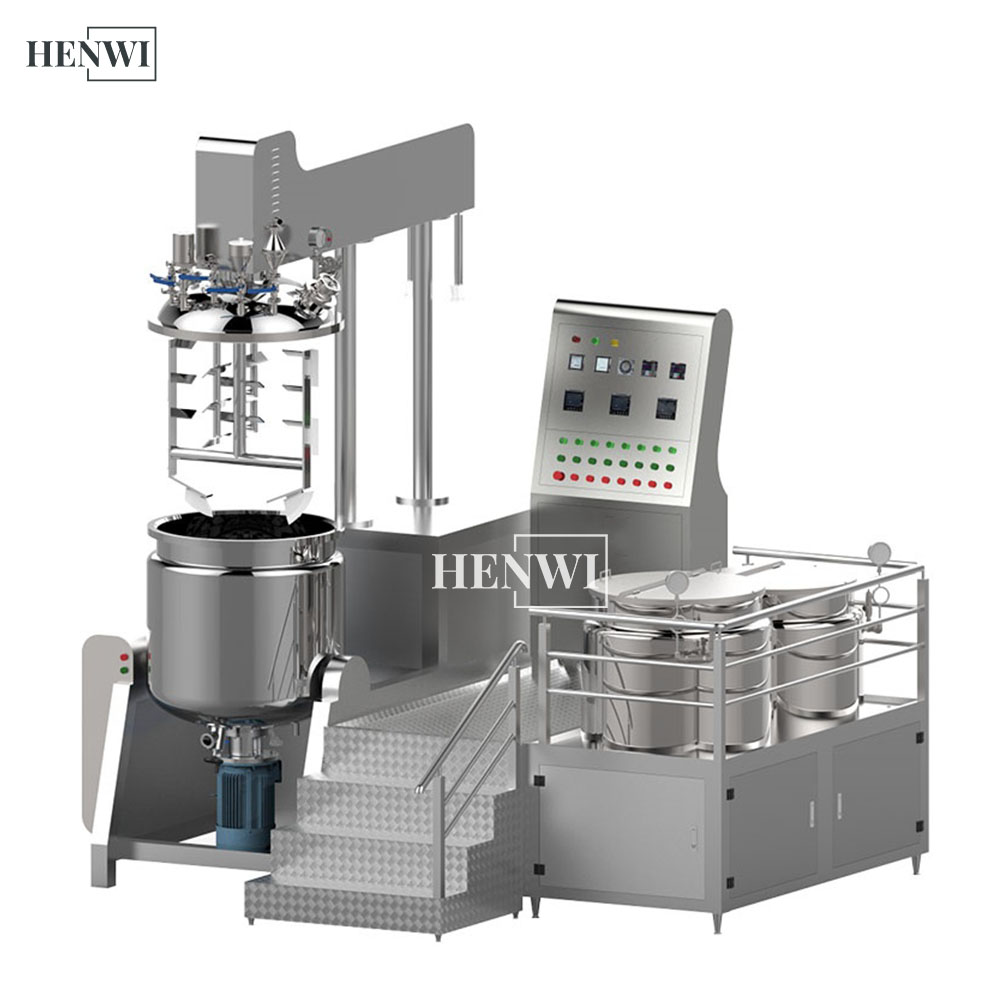

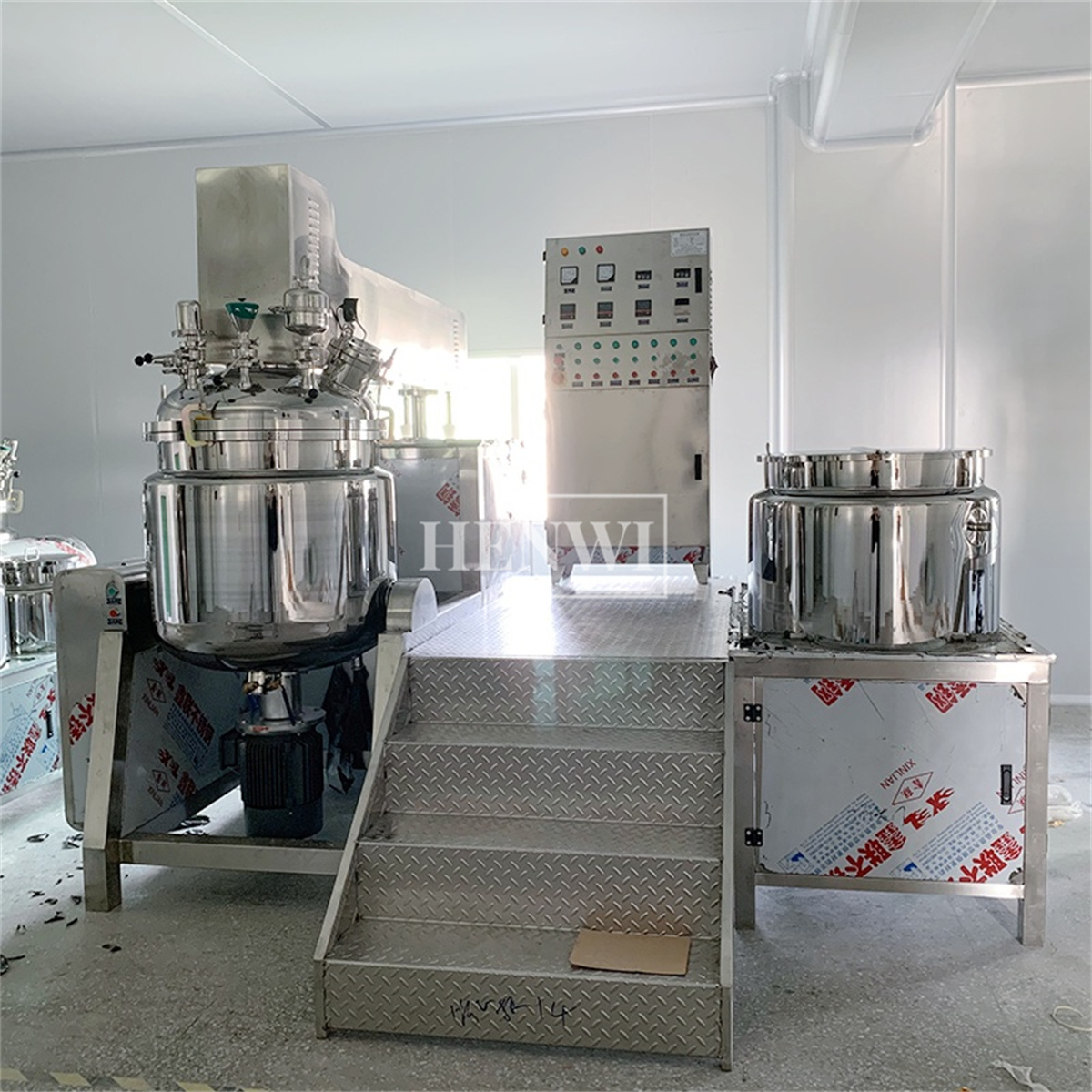

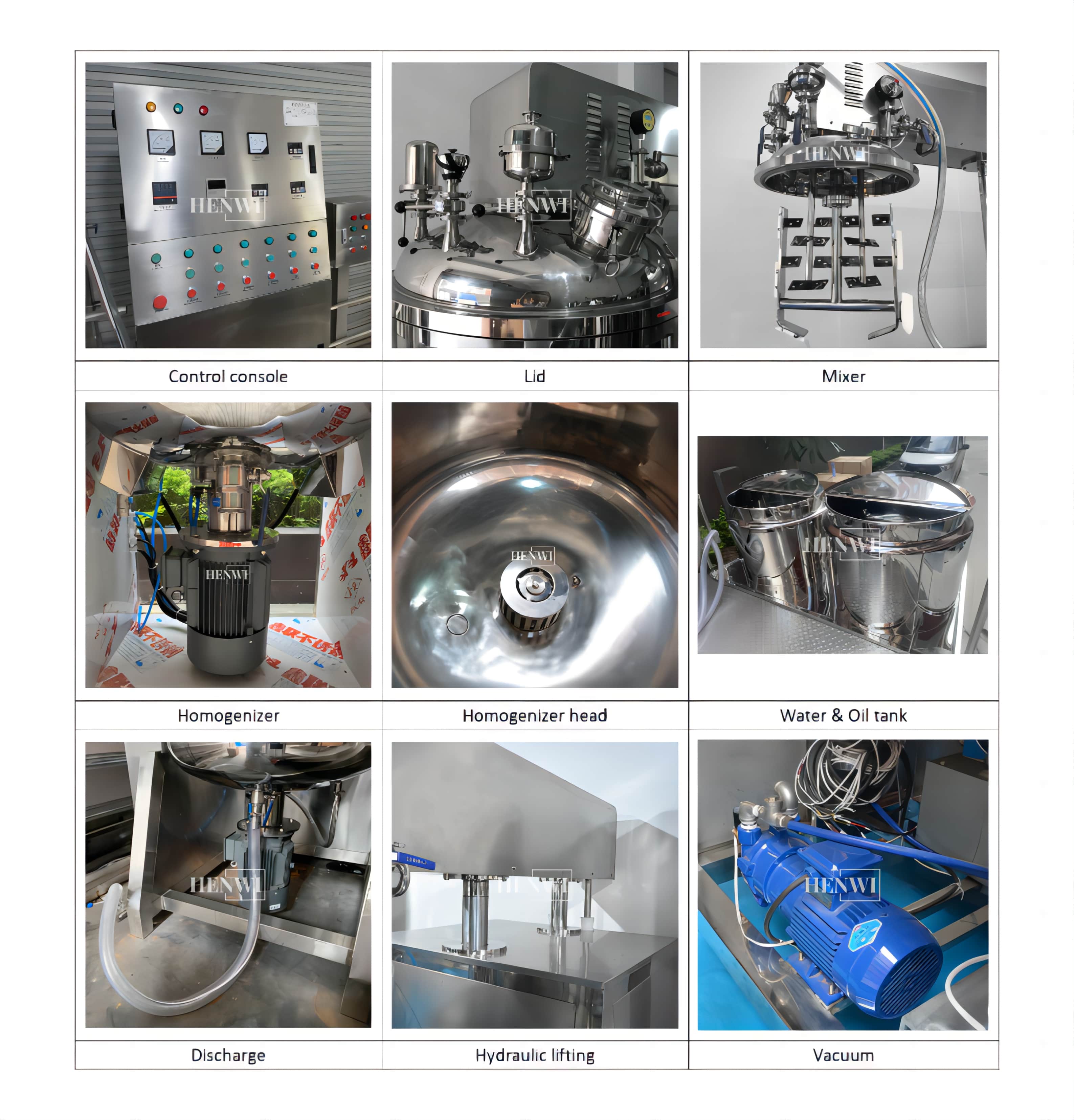

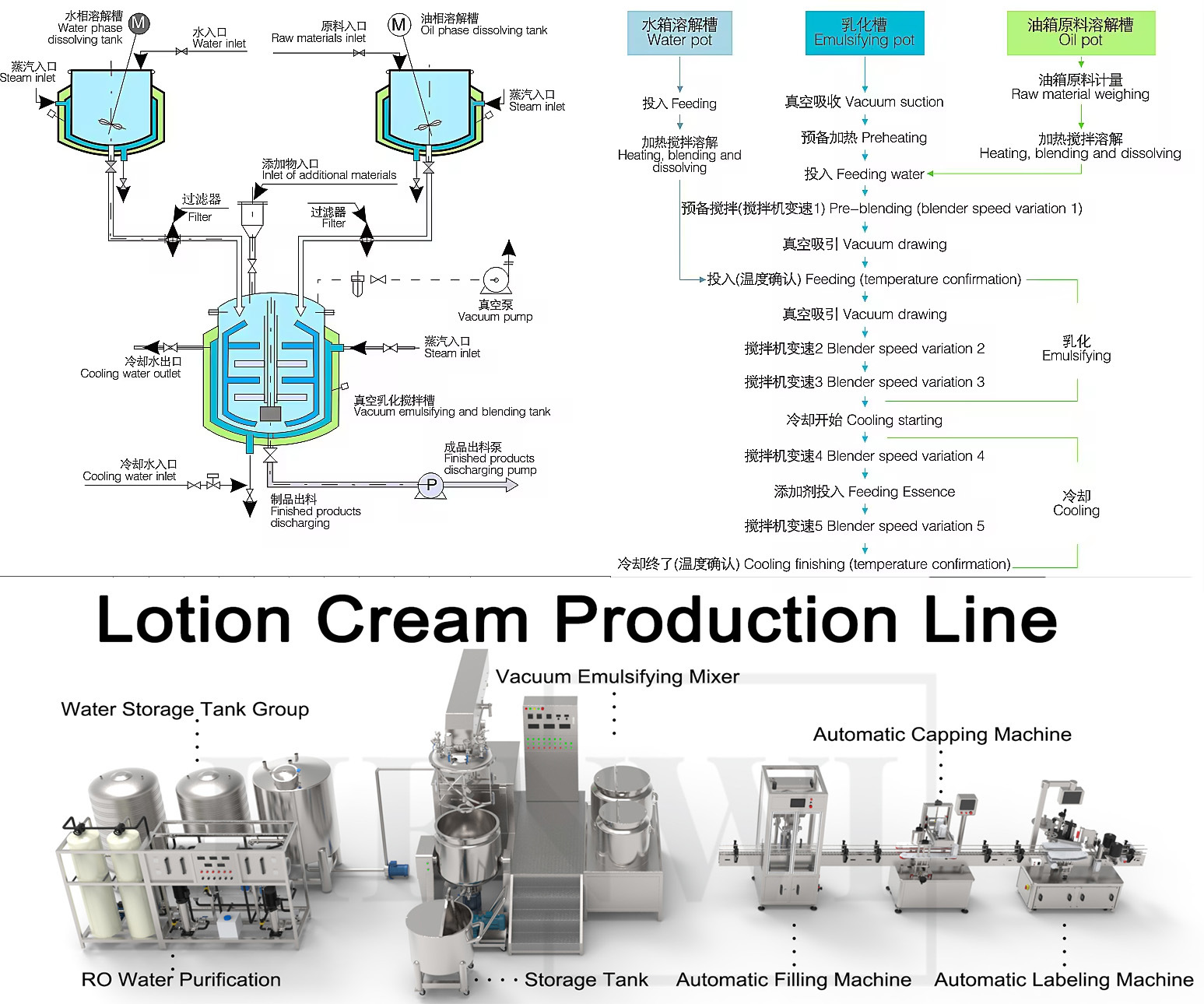

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.

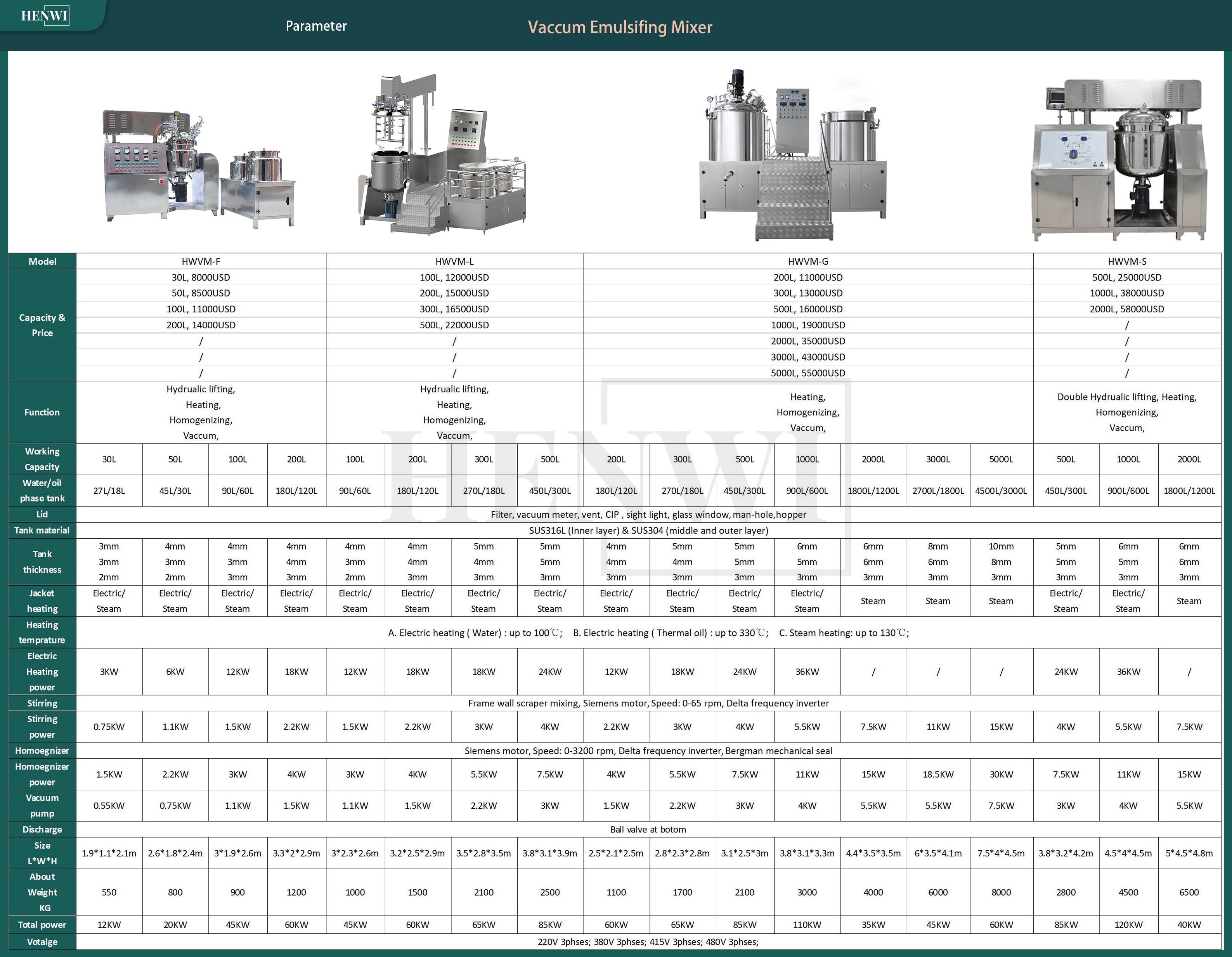

| 1 | Model: | HWVM-LT-500L |
| 2 | Working capacity | 500 Liters |
| 3 | Heating method | Steam/electric |
| 4 | Mixing type | Upper frame oar scraper mixer |
| 5 | Mixing motor power | 4KW |
| 6 | Mixing frequency inverter | 4KW |
| 7 | Mixing speed | 0-65rpm |
| 8 | Homogenizer type | Bottom homogenizer |
| 9 | Homogenizer frequency inverter | 7.5KW |
| 10 | Homogenizer speed | 0-3000rpm(50Hz)/0-3600rpm(60Hz) |
| 11 | Hydraulic lifting system | 1.5KW |
| 12 | Vacuum system | Water cycle vacuum pump, power: 3KW |
| 13 | Control method | Button control |
| 14 | Frequency inverter | Delta |
| 15 | Electrical components | Delixi |
| 16 | Jacket | Double jacket, 3 layers |
| 17 | Tank's materials | Inner layer 5mm/SUS316 Middle layer 5mm/SUS304 Outer layer 3mm/SUS304 |
| 18 | Water and oil phase tank | 450L/300L With mixing and heating function |
