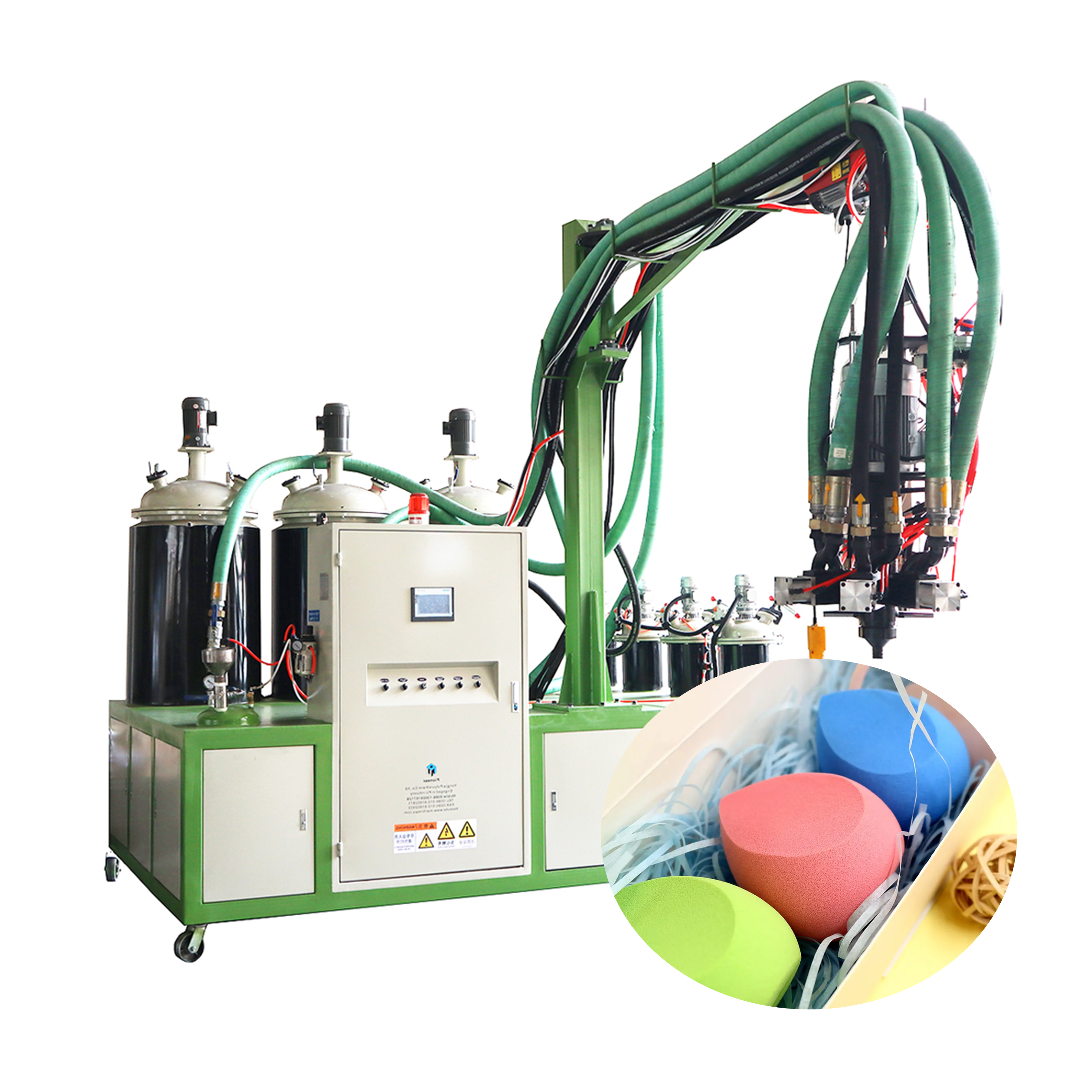

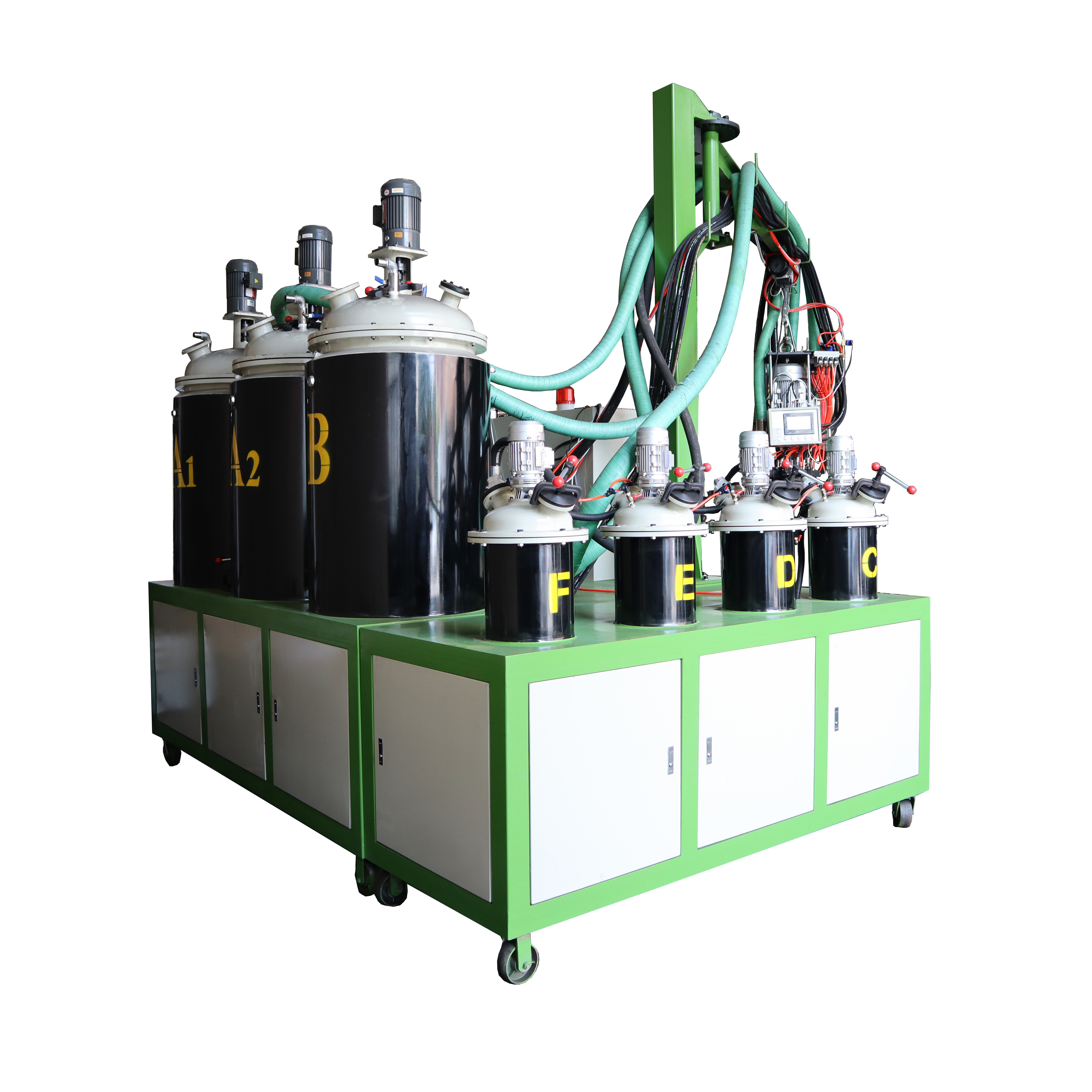

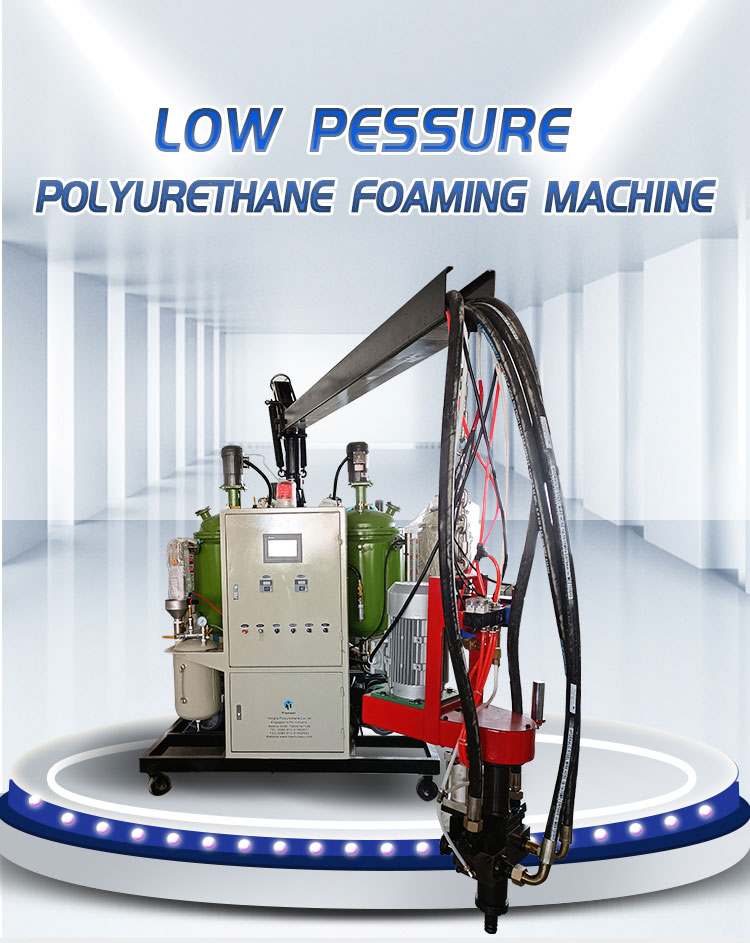

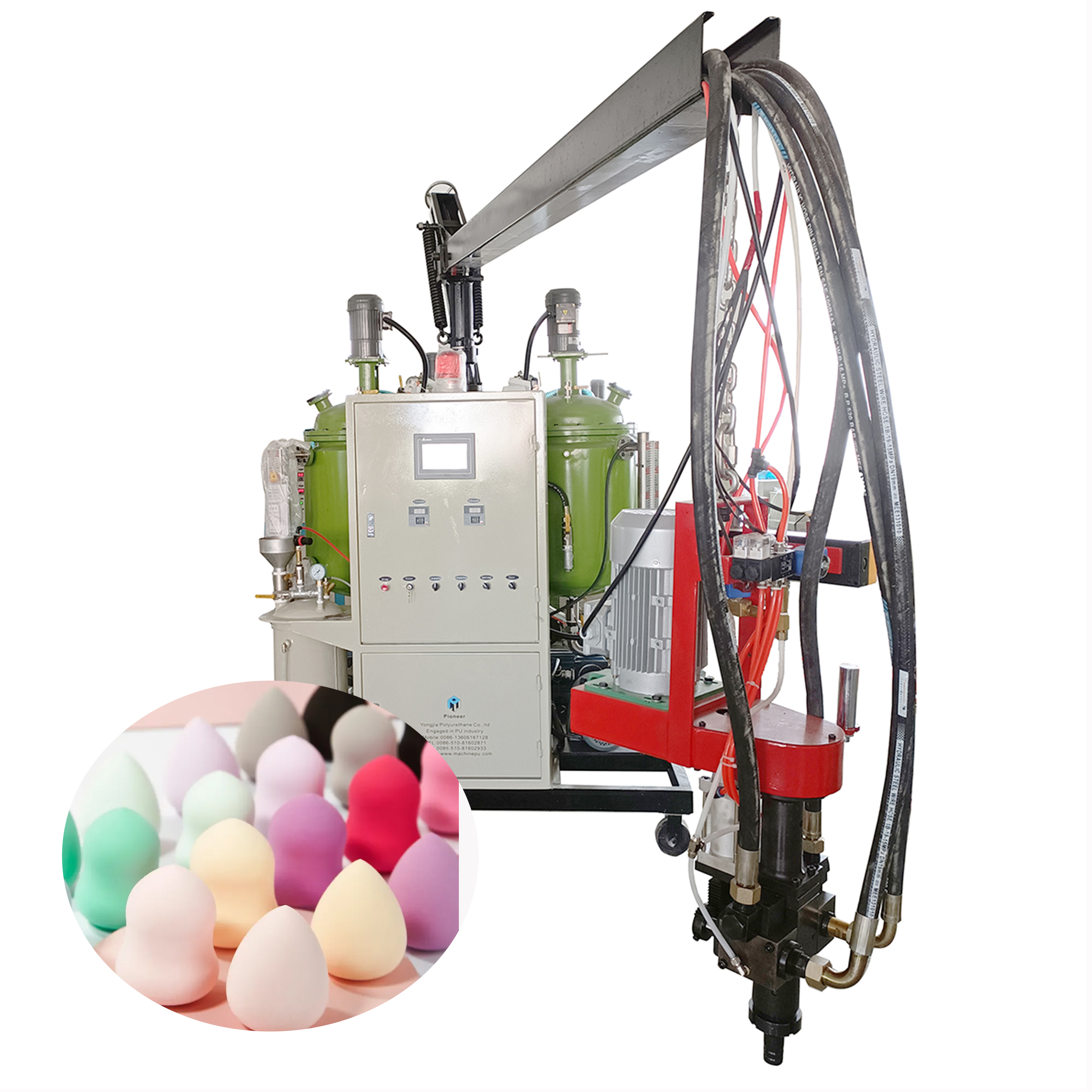

Polyurethane foaming machine features economical, convenient operation, and maintenance. It can be customized according to various customer requests for pouring applications.
This polyurethane foaming machine utilizes two primary raw materials: Polyurethane and Isocyanate. It is highly versatile and widely used across multiple industries, including daily necessities, automobile decoration, medical equipment, sports industry, leather footwear, packaging, and furniture manufacturing.
| No. | Item | Technical Parameter |
|---|---|---|
| 1 | Foam application | Flexible foam |
| 2 | Raw material viscosity (22℃) | POLYOL：3000CPS / ISOCYANATE：1000MPas |
| 3 | Injection Output | 9.4-37.4g/s |
| 4 | Mixing ratio range | 100：28～48 |

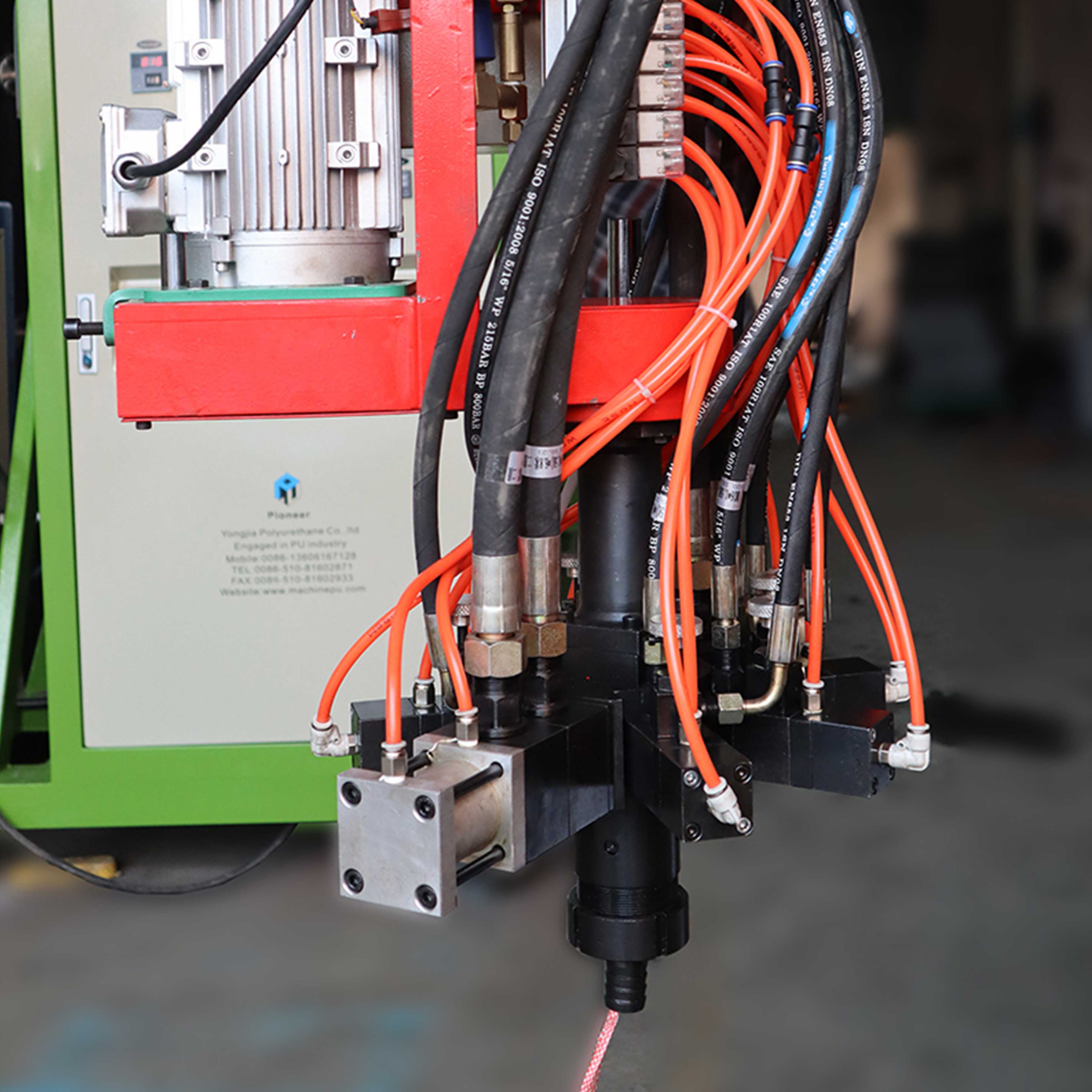

| 5 | Mixing head | 2800-5000rpm, forced dynamic mixing |
| 6 | Tank Volume | 120L |
| 7 | Metering pump | A pump: JR12 Type; B Pump: JR6 Type |
| 8 | Compressed air requirement | Dry, oil free; P：0.6-0.8MPa; Q：600NL/min |
| 9 | Nitrogen requirement | P：0.05MPa; Q：600NL/min |
| 10 | Temperature control system | Heat：2x3.2kW |
| 11 | Input power | Three-phase five-wire, 380V 50HZ |
| 12 | Rated power | About 9KW |
The polyurethane low-pressure machine is ideal for manufacturing 3D soft bag background wall panels. Products made from this material offer excellent decorative effects, a distinctive three-dimensional appearance, soft texture, sound insulation, anti-collision properties, and moisture resistance.
It is also suitable for producing polyurethane pillows, steering wheels, bumpers, self-skinning parts, high resilience components, slow rebound items, toys, fitness equipment, insulation layers, bicycle cushions, rigid foam, cold storage panels, medical equipment, elastomers, shoe soles, and more.
